first of all, we have to know about DWH dimension types. it can be FLAT or PARENT-CHILD (hierarchical).
NOTE: This Dynamic procedure is only to create PARENT-CHILD (hierarchical) dimension. if you try you can also create a part of the FLAT dimension.
FLAT Dimension: which dimension table contains flat information with some ID for main/PK column and other important columns. see below table ...
PRODUCT_ID
|
PRODUCT
|
MARKET_ID
|
MARKET
|
MANUFACTURER
|
P000001
|
PARA
|
M000001
|
A8A
|
ACI
|
P000002
|
NAPA
|
M000002
|
A7A
|
SQARE
|
PARENT-CHILD / Hierarchical Dimension: which dimension table contains all code in one column as PK and maintain a relationship with other attribute using parent code as a parent-child hierarchy. see below ..
PRODUCT_CODE
|
PARENT_CODE
|
DESCRIPTION
|
LEVEL_NO
|
LEVEL_NAME
|
MNUFACTURAR
|
N000001
|
N000001
|
TOTAL MARKET
|
1
|
TOTAL
|
|
M000001
|
N000001
|
A8A
|
2
|
MARKET
|
|
M000002
|
N000001
|
A7A
|
2
|
MARKET
|
|
P000001
|
M000001
|
PARA
|
3
|
PRODUCT
|
ACI
|
P000002
|
M000002
|
NAPA
|
3
|
PRODUCT
|
SQARE
|
NOTE: This Dynamic procedure is only to create PARENT-CHILD / Hierarchical dimension. if you try you can also create a part of the FLAT dimension.
All is you have to pass some parameters. A parameter can be a SQL or CASE statements.
Below is the code of this PROC -- also you can download the PROC (click here)
-----------------------------------

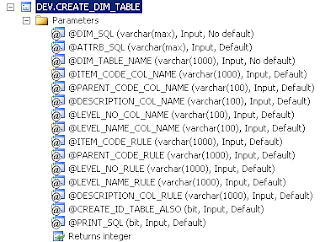

GLOBAL_DB.dbo.CREATE_DIM_TABLE
you can place this proc in a database and can use this from any database just make sure the use of tergat db name in table name.
@DIM_SQL
|
SQL for the Hierarchy and main
dimension;
like select level1, level2, level3… from DB_NAME.dbo.Table_Name; Hierarchy sequence is must use full table name with db name like DB_NAME.dbo.Table_Name
column name would be the LEVEL_NAME
|
@ATTRB_SQL
|
SQL for additional columns in final
dimension; internal Synonym of this SQL is "B"
You can say additional attributes like Manufacturer. DECSRIPTION_COLUMN is must; like below to add additional attributes only available in level3 select level3 as DESCRIPTION_COLUMN, Man from DB_NAME.dbo.Table_Name |
@DIM_TABLE_NAME
|
Full Table Name like
DB_NAME.dbo.Table_Name
|
@ITEM_CODE_COL_NAME
|
Name for Child Column which is
primary key; like PRODUCT_ID
|
@PARENT_CODE_COL_NAME
|
Name for parent column to maintain
relation of hierarchy
|
@DESCRIPTION_COL_NAME
|
Name for Description column, which
will contain the values from Hierarchy SQL (DIM_SQL)
|
@LEVEL_NO_COL_NAME
|
Name for LEVEL Number column of
Hierarchy level no
|
@LEVEL_NAME_COL_NAME
|
Name for LEVEL Name column of
Hierarchy
|
@ITEM_CODE_RULE
|
you can change ITEM_CODE here
using CASE, subSQL etc by using synonym "A"
|
@PARENT_CODE_RULE
|
you can change PARENT_CODE here
using CASE, subSQL etc by using synonym "A"
|
@LEVEL_NO_RULE
|
you can change LEVEL_NO here using
CASE, subSQL etc by using synonym "A"
|
@LEVEL_NAME_RULE
|
you can change LEVEL_NAME here
using CASE, subSQL etc by using synonym "A"
|
@DESCRIPTION_COL_RULE
|
you can change Description by
using Synonym "A" & "B"
|
@CREATE_ID_TABLE_ALSO
|
if you want Intermediate FLAT_DIM,
set it 1 ;
internally this table has the synonym "A"
|
@PRINT_SQL
|
if you like to see all SQL
generated by this proc; set it 1
|
Example:::
Let we have below table to create our Dimansion.
PRODUCT
|
ATC3
|
MANUFACTURER
|
PARA
|
A8A
|
ACI
|
NAPA
|
A7A
|
SQARE
|
now define the hierarchy..
Level1 = TOTAL MARKET
Level2 = ATC3 = MARKET
Level3 = PRODUCT
so, our output will be as below
PRODUCT_CODE
|
PARENT_CODE
|
DESCRIPTION
|
LEVEL_NO
|
LEVEL_NAME
|
MNUFACTURAR
|
T000001
|
T000001
|
TOTAL MARKET
|
1
|
TOTAL
| |
M000001
|
T000001
|
A8A
|
2
|
MARKET
| |
M000002
|
T000001
|
A7A
|
2
|
MARKET
| |
P000001
|
M000001
|
PARA -
|
3
|
PRODUCT
|
ACI
|
P000002
|
M000002
|
NAPA -
|
3
|
PRODUCT
|
SQARE
|
now CALL the proc to create a Table as our output !!
GLOBAL_DB.dbo.CREATE_DIM_TABLE @DIM_SQL = 'select ''TOTAL MARKET'' as TOTAL, ATC3 as MARKET, PRODUCT as PRODUCT from TARGET_DB.dbo.TName ',
@ATTRB_SQL = 'select PRODUCT as DESCRIPTION, MNUFACTURAR from TARGET_DB.dbo.TName ',
@DIM_TABLE_NAME = 'TARGET_DB.dbo.PROD_DIM',
@ITEM_CODE_COL_NAME = 'PRODUCT_CODE',
@PARENT_CODE_COL_NAME = 'PARENT_CODE',
@DESCRIPTION_COL_NAME = 'DESCRIPTION',
@LEVEL_NO_COL_NAME = 'LEVEL_NO',
@LEVEL_NAME_COL_NAME = 'LEVEL_NAME'
@ITEM_CODE_RULE = ' case LEVEL_NO when 1 then ''T'' when 2 then ''M'' else ''P'' end + right (''0000000''+PRODUCT_CODE,8) ',
@PARENT_CODE_RULE = ' case LEVEL_NO when 1 then ''T'' when 2 then ''T'' else ''M'' end + right (''0000000''+PARENT_CODE,8) ',
-- @LEVEL_NO_RULE = 'NA',
-- @LEVEL_NAME_COL_NAME = 'NA',
@DESCRIPTION_COL_RULE = ' A.DESCRIPTION + '' - ''+B.MNUFACTURAR ',
@CREATE_ID_TABLE_ALSO = 0,
@PRINT_SQL = 0;
Below is the code of this PROC -- also you can download the PROC (click here)
---------------------------------------------
CREATE PROCEDURE [DBO].[CREATE_DIM_TABLE] @DIM_SQL VARCHAR(MAX)
, @ATTRB_SQL VARCHAR(MAX) = 'NA'
, @DIM_TABLE_NAME VARCHAR(1000)
, @ITEM_CODE_COL_NAME VARCHAR(1000) = 'ITEM_CODE'
, @PARENT_CODE_COL_NAME VARCHAR(100) = 'PARENT_CODE'
, @DESCRIPTION_COL_NAME VARCHAR(100) = 'DESCRIPTION_COLUMN'
, @LEVEL_NO_COL_NAME VARCHAR(100) = 'LEVEL_NUMBER'
, @LEVEL_NAME_COL_NAME VARCHAR(100) = 'LEVEL_NAME'
, @ITEM_CODE_RULE VARCHAR(1000) = 'NA'
, @PARENT_CODE_RULE VARCHAR(1000) = 'NA'
, @LEVEL_NO_RULE VARCHAR(1000) = 'NA'
, @LEVEL_NAME_RULE VARCHAR(1000) = 'NA'
, @DESCRIPTION_COL_RULE VARCHAR(1000) = 'NA'
, @CREATE_ID_TABLE_ALSO BIT = 0
, @PRINT_SQL BIT = 0
AS
BEGIN
DECLARE @DB_NAME VARCHAR(100) = isnull(PARSENAME(@DIM_TABLE_NAME, 3), DB_NAME());
DECLARE @Drop_SQL NVARCHAR(2000);
SET NOCOUNT ON
DECLARE @isTable BIT = 'False'
IF (
@ITEM_CODE_RULE = 'NA'
OR @ITEM_CODE_RULE = ''
)
SET @ITEM_CODE_RULE = @ITEM_CODE_COL_NAME
IF (
@PARENT_CODE_RULE = 'NA'
OR @PARENT_CODE_RULE = ''
)
SET @PARENT_CODE_RULE = @PARENT_CODE_COL_NAME
IF (
@LEVEL_NAME_RULE = 'NA'
OR @LEVEL_NAME_RULE = ''
)
SET @LEVEL_NAME_RULE = @LEVEL_NAME_COL_NAME
IF (
@LEVEL_NO_RULE = 'NA'
OR @LEVEL_NO_RULE = ''
)
SET @LEVEL_NO_RULE = @LEVEL_NO_COL_NAME
IF (
@DESCRIPTION_COL_RULE = 'NA'
OR @DESCRIPTION_COL_RULE = ''
)
SET @DESCRIPTION_COL_RULE = 'a.' + @DESCRIPTION_COL_NAME
IF (@ATTRB_SQL = '')
SET @ATTRB_SQL = 'NA'
DECLARE @metaDataTableSQL VARCHAR(MAX) = 'select * into ##tmpMataDataScript from ' + CASE @isTable
WHEN 'True'
THEN @DIM_SQL
ELSE ' ( ' + @DIM_SQL + ' )'
END + ' a'
DECLARE @mataDataSQL VARCHAR(MAX) = 'select * from ##tmpMataDataScript'
IF object_id('tempdb..##tmpMataDataScript') IS NOT NULL
BEGIN
DROP TABLE ##tmpMataDataScript
END
DECLARE @Columns TABLE (
TABLE_QUALIFIER VARCHAR(500)
, TABLE_OWNER VARCHAR(500)
, TABLE_NAME VARCHAR(500)
, COLUMN_NAME VARCHAR(500)
, DATA_TYPE VARCHAR(500)
, TYPE_NAME VARCHAR(500)
, PRECISION VARCHAR(500)
, LENGTH VARCHAR(500)
, SCALE VARCHAR(500)
, RADIX VARCHAR(500)
, NULLABLE VARCHAR(500)
, REMARKS VARCHAR(500)
, COLUMN_DEF VARCHAR(500)
, SQL_DATA_TYPE VARCHAR(500)
, SQL_DATETIME_SUB VARCHAR(500)
, CHAR_OCTET_LENGTH VARCHAR(500)
, ORDINAL_POSITION VARCHAR(500)
, IS_NULLABLE VARCHAR(500)
, SS_DATA_TYPE VARCHAR(500)
)
EXEC (@metaDataTableSQL)
INSERT INTO @Columns
EXEC tempdb..sp_columns @table_name = N'##tmpMataDataScript'
UPDATE @Columns
SET COLUMN_NAME = QUOTENAME(COLUMN_NAME)
DECLARE @Table_ID TABLE (
ORDINAL_POSITION INT
, COLUMN_NAME VARCHAR(1000)
, COLUMN_GROUP VARCHAR(1000)
, CONDITION VARCHAR(5000)
, LEFT_COLUMN_NAME AS ('a' + cast(ORDINAL_POSITION AS VARCHAR) + '.' + QUOTENAME('ia' + cast(ORDINAL_POSITION AS VARCHAR) + '_' + COLUMN_NAME + '_code')
)
, LEFT_JOIN AS (
' LEFT JOIN (
SELECT cast(ROW_NUMBER() OVER (
ORDER BY ' + COLUMN_GROUP + ') AS VARCHAR) ' + QUOTENAME('ia' + cast(ORDINAL_POSITION AS
VARCHAR) + '_' + COLUMN_NAME + '_code ') + ',' + COLUMN_GROUP + ' from Data ia' + cast(ORDINAL_POSITION AS VARCHAR) + ' group by ' + COLUMN_GROUP +
' ) ' + 'a' + cast(ORDINAL_POSITION AS VARCHAR) + ' ON ' + CONDITION
)
, UNION_ALL AS (
'SELECT ' + QUOTENAME(COLUMN_NAME + '_CODE') + ' AS @ITEM_CODE_COL_NAME, ' + QUOTENAME('LEVEL' + cast((ORDINAL_POSITION - 1) AS
VARCHAR) + '_CODE') + ' as @PARENT_CODE_COL_NAME, ' + COLUMN_NAME + ' AS @DESCRIPTION_COL_NAME, ''' + cast(ORDINAL_POSITION AS VARCHAR) + '''' +
' AS @LEVEL_NO_COL_NAME, ' + '''' + replace(replace(COLUMN_NAME, '[', ''), ']', '') + '''' + ' AS @LEVEL_NAME_COL_NAME ' + ' from ' + '@DIM_TABLE_NAME' +
' GROUP BY ' + QUOTENAME('LEVEL' + cast((ORDINAL_POSITION - 1) AS VARCHAR) + '_CODE') + ' , ' + QUOTENAME(COLUMN_NAME + '_CODE') +
',' + COLUMN_NAME
)
)
INSERT INTO @Table_ID (
ORDINAL_POSITION
, COLUMN_NAME
)
SELECT ORDINAL_POSITION
, COLUMN_NAME
FROM @Columns
ORDER BY ORDINAL_POSITION
UPDATE @Table_ID
SET COLUMN_GROUP = substring((
SELECT ',' + COLUMN_NAME
FROM @Table_ID b
WHERE a.ORDINAL_POSITION >= b.ORDINAL_POSITION
FOR XML path('')
), 2, 50000)
, CONDITION = substring((
SELECT ' AND a.' + COLUMN_NAME + '=' + 'a' + cast(ORDINAL_POSITION AS VARCHAR) + '.' + COLUMN_NAME
FROM @Table_ID b
WHERE a.ORDINAL_POSITION >= b.ORDINAL_POSITION
FOR XML path('')
), 5, 50000)
FROM @Table_ID a
DECLARE @FINAL_QUERY VARCHAR(MAX) = 'WITH Data as (' + @DIM_SQL + ') select '
DECLARE @left_join VARCHAR(MAX) = ''
DECLARE @FINAL_QUERY_SELECT VARCHAR(MAX) = ''
SELECT @FINAL_QUERY_SELECT = @FINAL_QUERY_SELECT + ', a.' + a.COLUMN_NAME + ', ' + a.LEFT_COLUMN_NAME + ' AS ' + QUOTENAME(a.COLUMN_NAME + '_CODE')
, @left_join = @left_join + a.LEFT_JOIN
FROM @Table_ID a
SET @FINAL_QUERY = @FINAL_QUERY + substring(@FINAL_QUERY_SELECT, 2, 50000) + ' INTO ' + @DIM_TABLE_NAME + '_ID' + ' from Data a ' + @left_join
SET @Drop_SQL = 'IF EXISTS (
SELECT *
FROM ' + @DB_NAME + '.sys.objects
WHERE object_id = OBJECT_ID(''' + @DIM_TABLE_NAME + '' +
'_ID'')
AND type IN (N''U'')
)
EXEC (''DROP TABLE ' + @DIM_TABLE_NAME + '' + '_ID'')';
EXEC (@Drop_SQL)
IF @PRINT_SQL = 1
PRINT @FINAL_QUERY
EXEC (@FINAL_QUERY)
SET @FINAL_QUERY_SELECT = ''
SELECT @FINAL_QUERY_SELECT = @FINAL_QUERY_SELECT + ' UNION ALL ' + a.UNION_ALL
FROM @Table_ID a
SET @FINAL_QUERY_SELECT = SUBSTRING(@FINAL_QUERY_SELECT, 12, 50000)
SELECT @FINAL_QUERY_SELECT = CASE
WHEN a.ORDINAL_POSITION = 1
THEN replace(replace(@FINAL_QUERY_SELECT, 'LEVEL0', a.COLUMN_NAME + ']'), 'LEVEL1', a.COLUMN_NAME + ']')
ELSE replace(@FINAL_QUERY_SELECT, 'LEVEL' + cast(ORDINAL_POSITION AS VARCHAR), a.COLUMN_NAME + ']')
END
FROM @Table_ID a
DECLARE @DIM_TABLE_NAME_INT VARCHAR(1050) = @DIM_TABLE_NAME + CASE @ATTRB_SQL
WHEN 'NA'
THEN ''
ELSE '_INT'
END
SET @FINAL_QUERY_SELECT =
'select @ITEM_CODE_RULE as @ITEM_CODE_COL_NAME,@PARENT_CODE_RULE as @PARENT_CODE_COL_NAME,@DESCRIPTION_COL_NAME,@LEVEL_NO_RULE as @LEVEL_NO_COL_NAME,@LEVEL_NAME_RULE as @LEVEL_NAME_COL_NAME INTO '
+ @DIM_TABLE_NAME_INT + ' from ( ' + replace(@FINAL_QUERY_SELECT, '@DIM_TABLE_NAME', @DIM_TABLE_NAME + '_ID') +
' ) a ORDER BY cast (@LEVEL_NO_COL_NAME as int),' + CASE rtrim(LTRIM(@ITEM_CODE_RULE))
WHEN rtrim(LTRIM(@PARENT_CODE_RULE))
THEN ''
ELSE CASE
WHEN @PARENT_CODE_RULE = @PARENT_CODE_COL_NAME
THEN 'cast(@PARENT_CODE_RULE as int), '
ELSE '@PARENT_CODE_RULE, '
END
END + CASE
WHEN @ITEM_CODE_RULE = @ITEM_CODE_COL_NAME
THEN ' cast(@ITEM_CODE_RULE as int)'
ELSE ' @ITEM_CODE_RULE'
END
SET @Drop_SQL = 'IF EXISTS (
SELECT *
FROM ' + @DB_NAME + '.sys.objects
WHERE object_id = OBJECT_ID(''' + @DIM_TABLE_NAME_INT +
''')
AND type IN (N''U'')
)
EXEC (''DROP TABLE ' + @DIM_TABLE_NAME_INT + ''')';
EXEC (@Drop_SQL)
SET @FINAL_QUERY_SELECT = REPLACE(@FINAL_QUERY_SELECT, '@ITEM_CODE_COL_NAME', @ITEM_CODE_COL_NAME)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@PARENT_CODE_COL_NAME', @PARENT_CODE_COL_NAME)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@DESCRIPTION_COL_NAME', @DESCRIPTION_COL_NAME)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@LEVEL_NO_COL_NAME', @LEVEL_NO_COL_NAME)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@LEVEL_NAME_COL_NAME', @LEVEL_NAME_COL_NAME)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@ITEM_CODE_RULE', @ITEM_CODE_RULE)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@PARENT_CODE_RULE', @PARENT_CODE_RULE)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@LEVEL_NO_RULE', @LEVEL_NO_RULE)
SET @FINAL_QUERY_SELECT = replace(@FINAL_QUERY_SELECT, '@LEVEL_NAME_RULE', @LEVEL_NAME_RULE)
IF @PRINT_SQL = 1
PRINT @FINAL_QUERY_SELECT
EXEC (@FINAL_QUERY_SELECT)
SET @Drop_SQL = 'IF EXISTS (
SELECT *
FROM ' + @DB_NAME + '.sys.objects
WHERE object_id = OBJECT_ID(''' + @DIM_TABLE_NAME + '' +
'_ID'')
AND type IN (N''U'')
)
AND ' + cast(@CREATE_ID_TABLE_ALSO AS VARCHAR) + ' = 0
EXEC (''DROP TABLE ' + @DIM_TABLE_NAME + '' +
'_ID'')';
EXEC (@Drop_SQL)
IF @DIM_TABLE_NAME <> @DIM_TABLE_NAME_INT
BEGIN
SET @metaDataTableSQL = 'select * into ##tmpMataDataScript from ' + ' ( ' + @ATTRB_SQL + ' )' + ' a'
SET @mataDataSQL = 'select * from ##tmpMataDataScript'
IF object_id('tempdb..##tmpMataDataScript') IS NOT NULL
BEGIN
DROP TABLE ##tmpMataDataScript
END
DELETE
FROM @Columns
EXEC (@metaDataTableSQL)
INSERT INTO @Columns
EXEC tempdb..sp_columns @table_name = N'##tmpMataDataScript'
UPDATE @Columns
SET COLUMN_NAME = QUOTENAME(COLUMN_NAME)
SET @FINAL_QUERY_SELECT = 'select ' + 'a.' + @ITEM_CODE_COL_NAME + ', a.' + @PARENT_CODE_COL_NAME + ',' + @DESCRIPTION_COL_RULE + ' as ' + @DESCRIPTION_COL_NAME +
', a.' + @LEVEL_NO_COL_NAME + ', a.' + @LEVEL_NAME_COL_NAME
SELECT @FINAL_QUERY_SELECT = @FINAL_QUERY_SELECT + ', b.' + a.COLUMN_NAME
FROM @Columns a
WHERE a.COLUMN_NAME NOT LIKE '%' + @DESCRIPTION_COL_NAME + '%'
ORDER BY a.ORDINAL_POSITION
SET @FINAL_QUERY_SELECT = @FINAL_QUERY_SELECT + ' into ' + @DIM_TABLE_NAME + ' from ' + @DIM_TABLE_NAME_INT + ' a ' + ' left join (' + @ATTRB_SQL + ') b on a.' +
@DESCRIPTION_COL_NAME + ' = b.' + @DESCRIPTION_COL_NAME + ' order by cast(a.' + @LEVEL_NO_COL_NAME + ' as int) , ' + CASE
WHEN @PARENT_CODE_RULE = @PARENT_CODE_COL_NAME
THEN 'cast(' + 'a.' + @PARENT_CODE_COL_NAME + ' as int), '
ELSE 'a.' + @PARENT_CODE_COL_NAME + ' ,'
END + CASE
WHEN @ITEM_CODE_RULE = @ITEM_CODE_COL_NAME
THEN 'cast(' + 'a.' + @ITEM_CODE_COL_NAME + ' as int) '
ELSE 'a.' + @ITEM_CODE_COL_NAME
END
IF @PRINT_SQL = 1
PRINT (@FINAL_QUERY_SELECT)
SET @Drop_SQL = 'IF EXISTS (
SELECT *
FROM ' + @DB_NAME + '.sys.objects
WHERE object_id = OBJECT_ID(''' + @DIM_TABLE_NAME +
''')
AND type IN (N''U'')
)
EXEC (''DROP TABLE ' + @DIM_TABLE_NAME + ''')';
EXEC (@Drop_SQL)
EXEC (@FINAL_QUERY_SELECT)
SET @Drop_SQL = 'IF EXISTS (
SELECT *
FROM ' + @DB_NAME + '.sys.objects
WHERE object_id = OBJECT_ID(''' + @DIM_TABLE_NAME_INT +
''')
AND type IN (N''U'')
)
EXEC (''DROP TABLE ' + @DIM_TABLE_NAME_INT + ''')';
EXEC (@Drop_SQL)
END
END
No comments:
Post a Comment
